PROPOSED WORK
Using at least one of the operators of the list:

• Reducing pulley. Crank
• .
• Biela.
• trigger.
• Crankshaft.
• switch.

Design and build a device to solve the next challenge or problem:

"Move action figures a little theater of puppets "

MANDATORY CONDITIONS

1. should be able to play the role expected to be operated manually and automatically.
2. The maximum dimensions of the mechanism will be 20cm x 50cm base and 35cm high.
3. The mechanism should be stable, ie should not dump easily.
4. be made of chipboard 10 mm, 4 mm thick plywood, strips of wood and recycled materials. ADOPTED RESOLUTION

need to convert a circular motion, the pulley, in a linear motion (front to back), the characters " caperucita " and "The Wolf", for this we will use a rod as operator of transmission of motion and both characters do not move in tandem, we will use a crankshaft get so Riding Hood when the wolf back progress and vice versa.



The materials used to construct the operators were:

• Pulley, 10mm plywood.
• Crankshaft, round wooden bar 4 mm strip 10 * 5mm samba.
• Cranks, fresh wire of 1.5 mm.
• Pistons 5mm plywood.

In a second step we added a motor and pulley system to slow. The following
video you can see the operation of the system.

Kicker Warhorse For Sale 2010

CONAREME Social Marketing: health professionals and patient safety PressCamp

Social Marketing: health professionals and patient safety

View more presentations from manyez .

Is Mac Makeup Safe During Pregnancy?

CONVEYOR

MOTION

designs and constructs projects using the method of technological a machine object that includes any of mechanical operators following:

1. train wheels.
2. gear system.
3. rack and pinion.

The object must meet the following conditions:

MANDATORY

1. The maximum dimensions of the mechanism shall base 30cm x 40cm and 35cm in height.
2. The mechanism should be stable, ie should not dump easily.
3. be made of chipboard 10 mm, 4 mm thick plywood and recycled materials such as cardboard, bicycle camera ....
4. Ribbon control will be automatic and will incorporate a cell LDR.
   ADOPTED RESOLUTION

is to build a system similar to the conveyor belts in large stores or warehouses.
Similar to that shown in the picture below, horizontal. The mechanisms are carrying pulleys, gears and worm.

Note To A Friend Who Is Depressed

MY FIRST SCHOOL PROJECT

This was the first school project to do, I did it with a colleague José Miguel Jurado. Both attended a course organized by the CEP OF ALGECIRAS , at first I was raised not to attend because he was a year of opposition and the fact that this one so overwhelmed when you have to prepare those who thought not attend the end I did and I liked so much that not only did this it was scheduled, but as was so successful the CEP other as then organized these courses and I remember what I learned and the fellow I met with them today I maintain a friendship.

Before participating in this course, he entered the workshop of Technology only saw nothing but machinery, materials and tools. On the other hand saw projects who came in textbooks and I found it so hard to implement them, always thinking that you have over thirty students, and you have to make all project work and draw on.

Today is a video of the project in that time, I will gradually introduce the information developed during the project preparation.



CIRCUIT

Shiny Gold Gameshark Cheats

Peru is sick journalism health?

PressCamp Peru: Is ill health journalism?

View more presentations from Ciberdoc .

PressCamp unconference in Peru, May 22, 2010.

Women With Husky Voices

therapeutic value medicines sold in Peru

therapeutic value medicines sold in Peru

View more documents from Ciberdoc .

Veyron Engine Blueprint

A "ticker" for Heritage / 1

in the "era" of Heritage / 1, a video-terminal as the legendary DEC VT100 could be considered a luxury item (given their cost). The most common as a means of user-computer communication was the teletype, hence the denominator TTY (teletype) used by Unix to denote the terminals.



Until now I had thought that Heritage / 1 would use, as terminals, PCs running a terminal emulator such as KERMIT on MS-DOS platform, but even this idea seemed "too modern" (even as emulation). And that is why I bought a typewriter to make it the "teletype" Heritage / 1 ... when the time comes, because the computer does not even exist yet.



Of course, I unpacked the computer, I hooked a piece of paper and began to write ... Experience has been nothing but rewarding!

I can surely say that more than twenty years since I sat down to write on such a machine, is radically different to do on a computer as ours. The sound of print immediately following the keystroke is like a melody out of the piano (directly from your hand) and not the CD Player.

I have no very clear how I will attach my "teletype" a Heritage / 1, ie, how can I modify it to make this possible. Surely begin to experiment with my PC via RS232, since Heritage / 1 has a long way to be born. But for now I have found that the experience of communicating through a "teletype" (instead of a video-terminal) is unique, something that is inconceivable until you have experienced with one's fingers.

Pantygirdle Punishment

DRAWBRIDGE

is conceived, designed, planned and constructed a model of a DRAWBRIDGE
with different materials available, that meets the following conditions: CONDITIONS

• The rise and fall of the board will be smooth.

• His drive is to 4.5 V power and control:

A) As a first step manually using circuit switching.
B) In a second phase is automatic control using a relay and limit switches.

• contain at least two motion-processing systems.
• should be aesthetic and harmonious ways.
• adjustment parts and finish should be accurate.
• The maximum dimensions shall not exceed the set 300x200x150 mm

OPTIONAL CONDITIONS

• status indicator lights will bridge deck.
• can be put to a red light when the bridge is going up and a green light when the bridge is down.

The object has to be functional, attractive, well built and finished and economic, so

should choose materials and processes compatible with their economic usefulness. ADOPTED RESOLUTION

Once created the problem and set these conditions
students proceed to search for information needed to deal with possible security solution.

A drawbridge is a type of movable bridge that can be raised with the help of a mechanical installation in order to allow entry through a gate, or to allow maritime traffic through a body of water. The moving part is rotated through a horizontal axis or as a hinge. To raise the platform used ropes or chains attached at opposite corners to the shaft.

TYPES OF BRIDGES

overhead bridges : overhead bridges are those that revolve around a horizontal axis on a line of support, are included for both them drawbridges and overhead

Swing bridges, swing bridges In the vertical axis fit, as in the overhead two possibilities opening: two windows or turn on a pile symmetrical at the center of the navigation channel, although in rare cases can be located at an edge, or turn two semivanos with compensation on two batteries located at the edges of the channel.

Bridges Vertical Lift: vertical displacement bridges are simply supported panels, whose support can move vertically to rise to the height required for the navigation gauge

Source: http://puentes.galeon. com / types / clasifica.ht

manufacturing phase

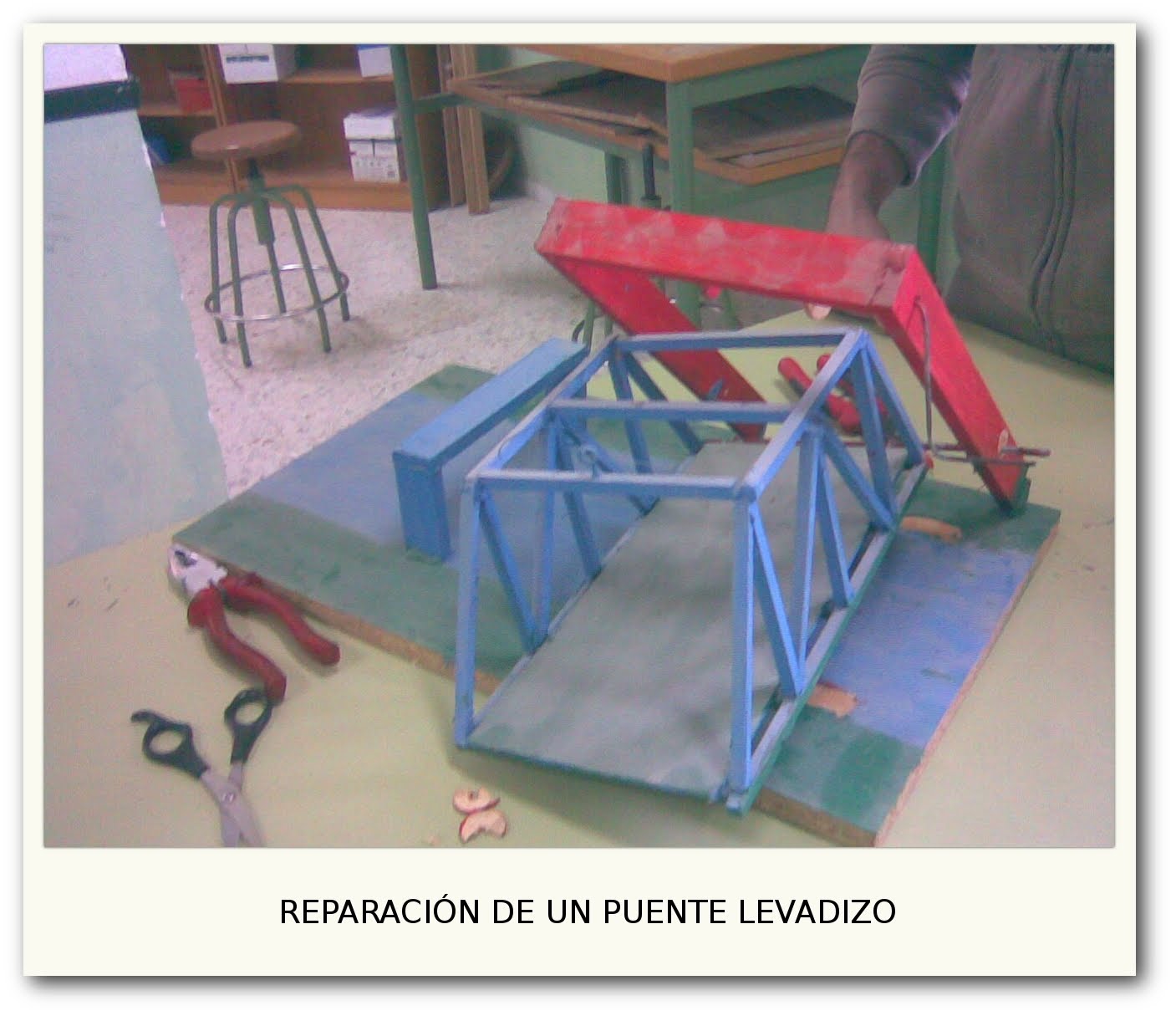

In our case we are going from a bridge and built on previous courses and recover parts of the project and will replaced those badly built piece by piece new ones.

Our repair has been to remove those parts were glued with hot melt gun , because with the passage of time and above all the heat had off, then we changed all the axes of the project (they were built with 2mm wire were twisted), by shafts constructed M4 threaded rod and finally we have replaced the uprights.

transmission system designed to allow raising and lowering the board, shall consist of a belt drive and gear motor.


To raise the board we have set up a pulley and a cotton thread .

be automatic control using a relay and limit switches in our case two, one on top of the uprights and another in the bottom right where the board supports.



The electrical circuit is as follows:


We have made a PCB to use a socket where to insert the relay, because if not, you end up botching the having to make welds on their pin. The connections are as follows:



Video end of the project, already in operation .
